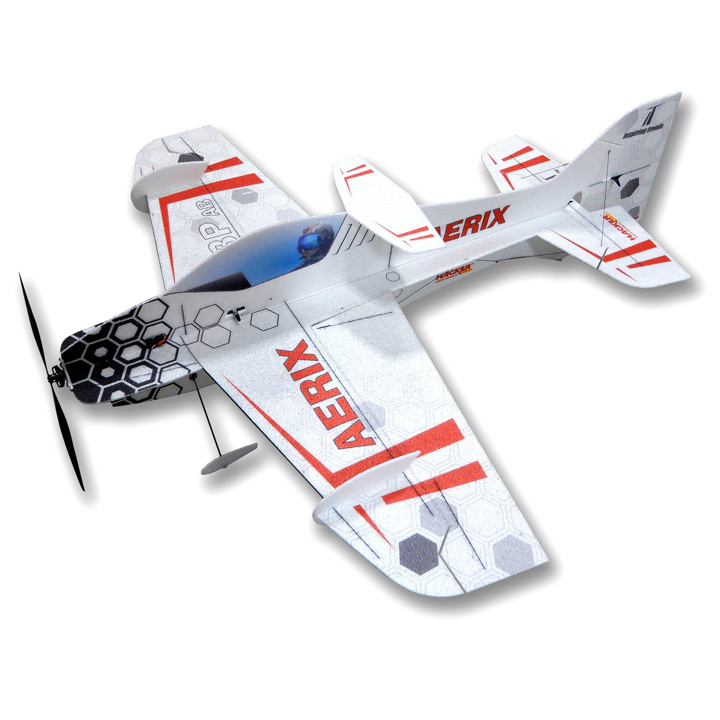

AERIX F3P AB

The AERIX F3P AB is a model designed for precision indoor aerobatics. It is a special model designed in cooperation with top aerobatic pilot Radek Raja, based on experience gained at the 2025 World Championships in Switzerland.

The combination of perfectly tuned sizes and ratios of all surfaces and optimized carbon reinforcement ensures perfect rigidity of the entire model structure, which contributes to predictable behavior and precise control of the model in all aerobatic maneuvers.

The model is designed for both beginners and experienced pilots, who can further tune the model exactly to their liking, especially with the aim of reducing the overall flight weight of the model.

The main reasons to choose AERIX:

- Low flight weight! With the T-Motor AM20 motor and a 10/3.1" carbon propeller, you can easily approach the 100g limit set by the rules, even without any additional "special" equipment. Even when using a standard motor weighing around 20g and a plastic propeller, e.g., APC 8/4.1, weight will be within 110-115g without the battery. A 2S 150mAh battery weighs about 10g. Experienced builders can easily reduce the weight further, for example, by removing parts of the servo boxes, removing the connectors on the servos, etc.

- Durable and long-lasting construction! The main part of the model uses 3mm EPP sheet with carbon reinforcements designed so that the entire reinforcement really works and the model's structure is stable in flight and during long-term use... and also so that it can withstand a few minor blows. The AERIX fuselage will not break behind the wing.

- Pull-pull system for rudder and elevator. No rigid rods in the guides, which sometimes rub with obvious consequences for neutral control surfaces, but light and strong threads with a simple tensioning mechanism.

AERIX is based on our previous indoor model SHAKE, which was launched in 2016.

Control channels

throttle, ailerons, rudder, elevator

Items needed to complete

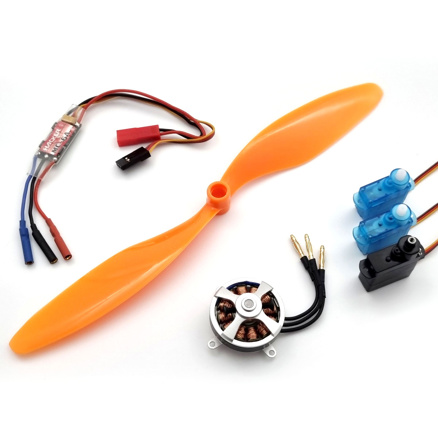

RC set with at least 4 channels and following components:

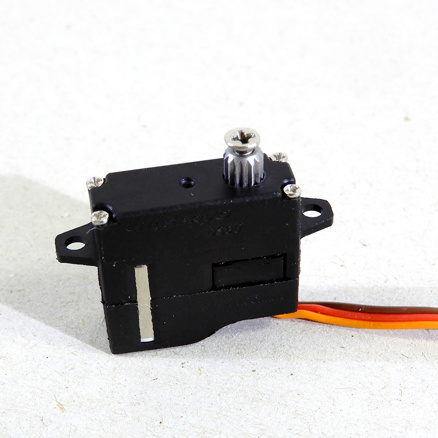

° 1× Servo 5–9 g, No. HC4303 or Chaservo No. Cha-Ds06

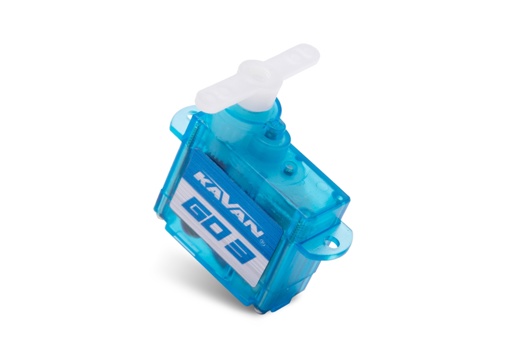

° 2× Servo 4–5 g for elevator and rudder, No. HC4380
° Brushless motor from 70 W, e.g. MFORCE 2812CA-27 (KV1780, 19 g) No. HC3503D or T-Motor AM20 (KV1500, 10 g)
° ESC MC-06A, No. HC3362
° LiPo battery from 2S 150 mAh
° Propeller GWS SF 8/4.3” No. HCG8043SF or APC 8/4.1”, for motor AM20 carbon prop T-Motor 10/3.1”
° Thin CA glue, No. HC6430
° CA kicker, No. HC6435
° Basic tools
