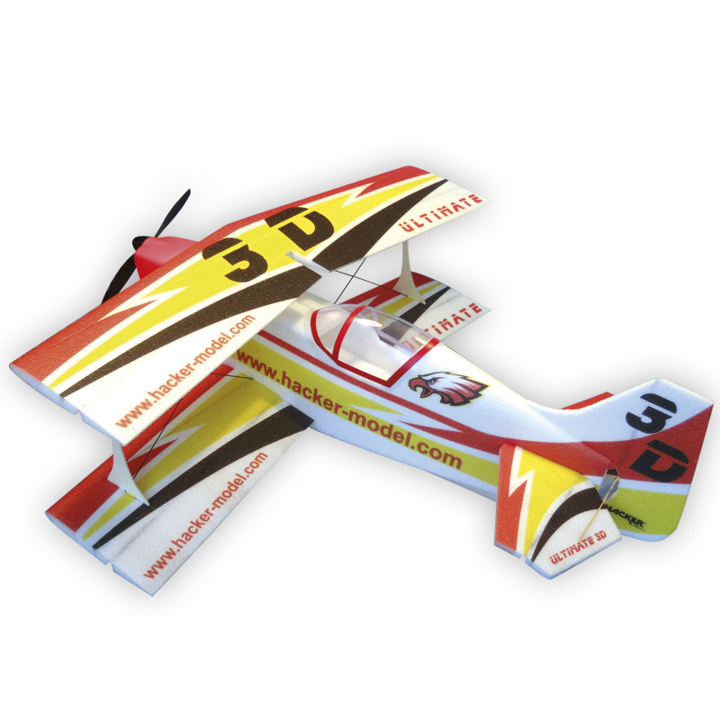

ULTIMATE 3D ARF 1000 yellow

A semi-scale aerobatic aircraft model designed for sport and 3D aerobatic flying.

The ULTIMATE 3D model is manufactured using modern technologies from almost “indestructible” EPP material. The 3D fuselage construction and carbon wing reinforcements ensure extreme strength and high durability.

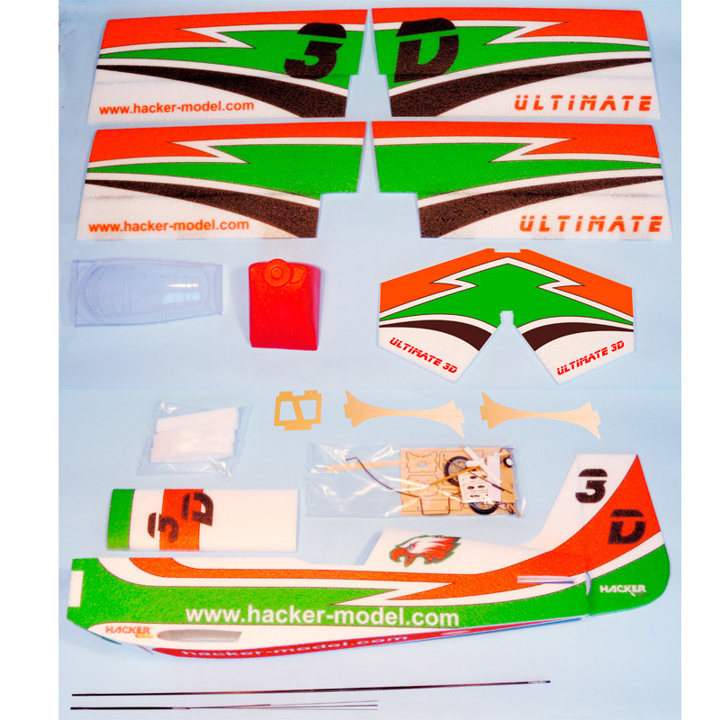

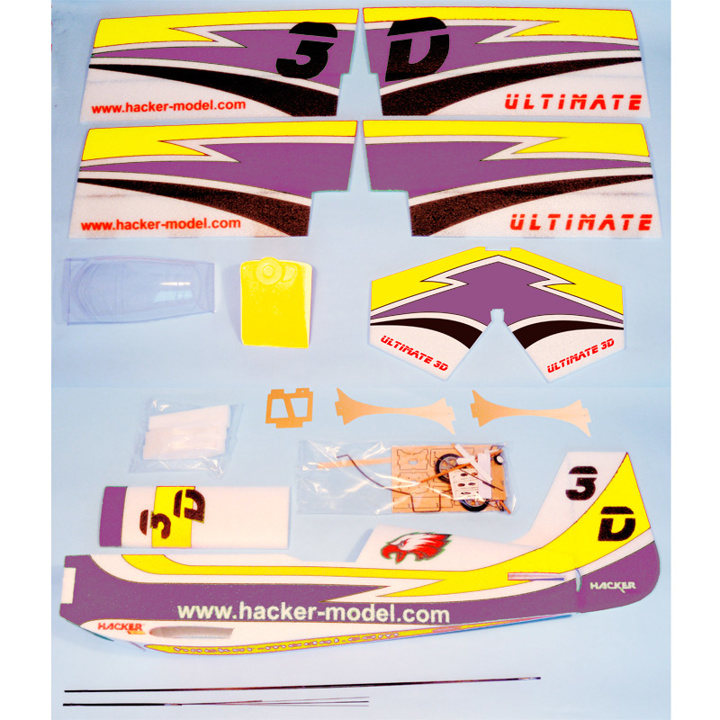

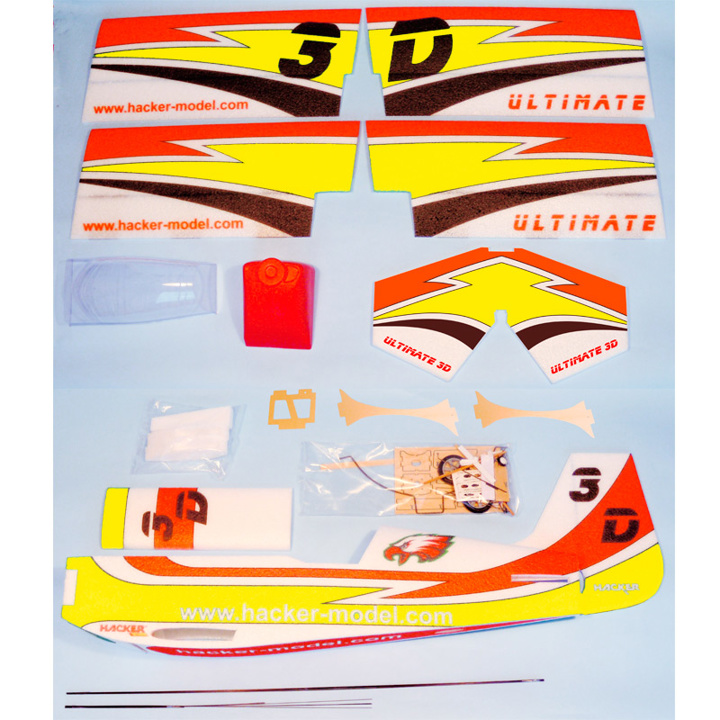

Includes:

• Fuselage, wings, elevator and rudder with high-quality colour print

• Landing gear

• Wheels

• Carbon reinforcements and pushrods

• All small accessories

• Instructions

Standard power setup:

• Motor: MFORCE 3530CA-14

• Speed controller: MC-22 or MC-45

• Propeller: APC 11/5.5” electric for LiPol 3S battery or APC 10/5” electric for LiPol 4S battery

• Battery: LiPol 3S or 4S 1600–2200 mAh

• Flying weight: > 770 g

A 4S battery significantly increases the performance of the power unit and, together with this motor and a 10/5E propeller, creates a good combination.

More powerful 3D setup:

• Motor: MFORCE 3536CA-8

• Speed controller: MC-45

• Propeller: APC 11/5.5” electric for LiPol 3S battery

• Battery: LiPol 3S 1500–2500 mAh

• Flying weight: > 800 g

You will need:

• 4-channel RC transmitter

• 4 mini servos 9–15 g MG cat. no. HC4357

• Brushless motor 250–400 W MFORCE 3536CA-8 cat. no. HC3512

• MC-45A speed controller cat. no. HC3375

• Alternatively, motor and speed controller combo cat. no. HC3542, including MF 3536CA-8 motor and MC-45A speed controller

• Spinner 45 mm

• APC 11/5.5” propeller cat. no. HCLP11055E

• Servo extension cables: 1× 10–15 cm cat. no. HC4479, 2× 20 cm cat. no. HC4480 and 2× 30 cm cat. no. HC4483

• LiPol 3S 1500–2500 mAh battery

• Thin cyanoacrylate CA glue with activator

• Basic tools

Parameters:

• Weight: > 770 g

• Wingspan: 1000 mm

• Length: 1050 mm

• RC: 4 – motor, ailerons 2 servos, elevator, rudder

• Motor: 250–400 W MFORCE 3530CA-14 / MFORCE 3536CA-8

• Speed controller: MC-45A

• Battery: LiPol 3–4S 1500–2500 mAh

• Propeller: 10/5” for 4S LiPol, 11/5.5” for 3S LiPol
